Breeder Floor Raising System-ZHENGZHOU OUKE MACHINERY CO.,LTD.

Breeder Floor Raising System

OUKE provides you with a complete breeder cage management system that meets the needs of animals today. The equipments including plastic floor, automatic egg nest, feeding line, drinking line, ventilation system, environment control system, cooling pad & heating system, provides better living environment for breeder.

Online inquiry

Previous Next

Details Parameter Advantage

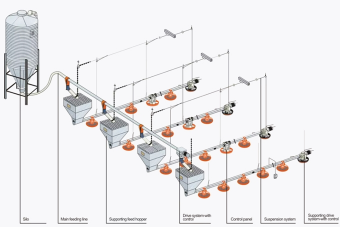

OUKE breeder floor raising is a system special designed for both broiler and layer breeder. It consists of main feeding system, chain feeding system for female, pan feeding system for male, water drinking system, climate control system, auto nest system with slat floor, manual nest, automatic scraper cleaning system etc.

By giving females a natural fertilization environment, this system saves time and labor. At the same time, it increases the breeding effectiveness and manageability of the farm.

1. Female feeding system

1.1 The chain feeding system remains the most adopted solution in the feeding of breeding females, commercial layers and pullets.

1.2 The wide range of accessories that can be added at any time during the cycle and position, allow the system to grow and develop according to the needs of the farm.

1.3 The chain feeding system is a system easy to use and maintain and, at the same time, highly reliable with an excellent quality/price ratio.

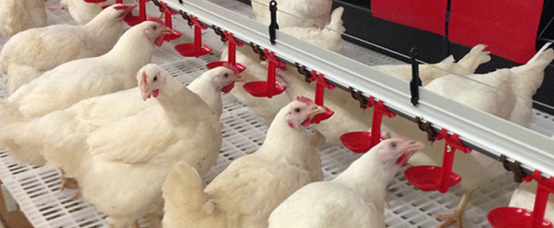

2. Male feeding system

2.1 Fully automatic feed pan dispenser, especially designed for breeding cockerels.

2.2 Cockerels are particularly aggressive and vigorous; besides, the rationing of the feed helps to make them hungry and nervous. The ideal feeder must therefore be sturdy, stable and have ample space to access to the feed.

2.3 The spiral conveyor system, sized to feed the breeding stock, ensures a constant amount of fresh feed in each pan of the line.

3. Nipple drinking system

3.1 Automatic nipple drinker for water distribution. Adaptable to different types of poultry farms such as broilers, chicken layer cage, breeding stock.

3.2 It is possible to choose between low or high water flow drip drinkers, to meet the various needs of the farm.

3.3 The water only comes out when the animal operates the valve. In this way, fresh and clean water is always supplied.

4. Nests

The laying nest is designed for the production of premium-quality hatching eggs.

1. Lifting feeding mode: the heights of the feed trough, feed box and motor components can be adjusted with supports or suspension systems. Compared with feeding on the ground, it has a better effect on improving feeding uniformity and reducing stress.

2. The thickness of the feed in the feed trough can be adjusted by adjusting the feeding plate of the hopper to meet the needs of chickens of different breeds and different ages.

3. Feed pan: the feed pan made of PP material with 14 grills is adopted for female, with an
